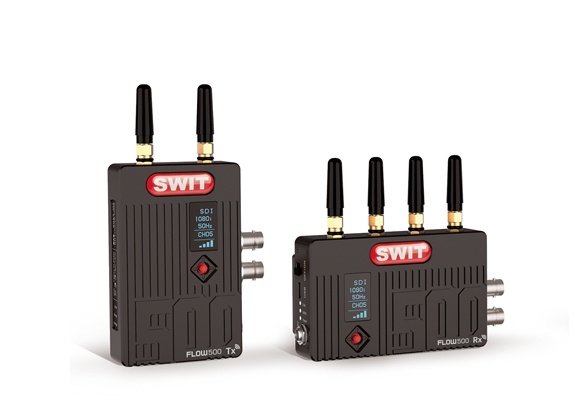

Swit Flow 500 SDI&HDMI 500ft/150m Wireless System

Swit Flow 500 SDI&HDMI 500ft/150m Wireless System

FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet (150 meters) Line-of

€ 742,95

excl. btw

€ 898,97

incl. btw

Prijs per stuk

Aantal:

Bestellen

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Mail 074-2504909

Omschrijving

›

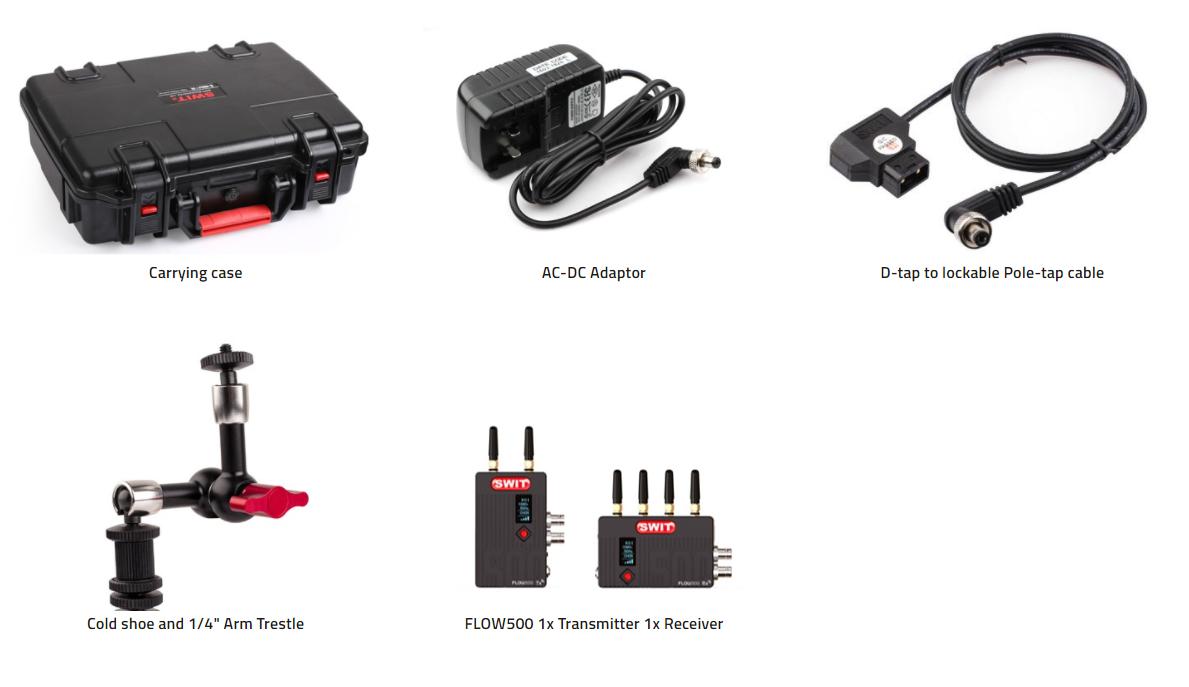

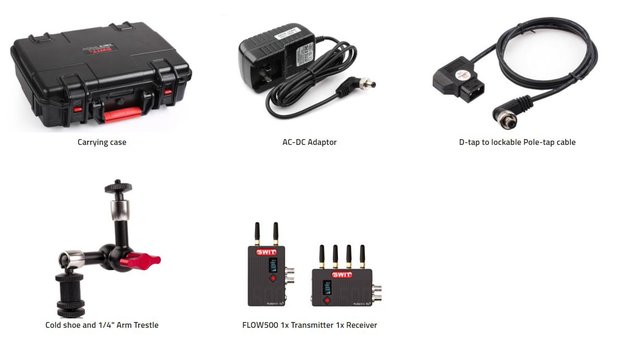

In the Box:

Informatie

› KUWI 5.1-5.9GHz Wireless Technology › DFS Comply › 3GSDI & HDMI, with 3GSDI loop out › 500ft/150m (Line-of-Sight) distance › Strong Wall-Cross Performance › 2-ch SDI/HDMI audio transmission › OLED info and channel switching › Support 3-4 pairs working in one location › Multicast - 1 transmitter to Max 4 receivers › Wireless protocol & content double encryption › Reclock and accurate color reproduction Input / Output Transmitter 3G/HD-SDI input×1; loop out x1 HDMI 1.3 input × 1 Receiver 3G/HD-SDI output×2 HDMI 1.3 output ×1 Video Formats SDI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 HDMI 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 Wireless Frequency 5.17GHz-5.69GHz and 5.75GHz-5.83GHz RF Modules OFDM 16QAM, 64QAM, QPSK, BPSK RF Power 128mW Transmission Distance 500 feet / 150 meters (Line of sight) General Input voltage Transmitter DC 7-34V Receiver DC 7-34V Power Consumption Transmitter 8W Receiver 8W Dimension(w/o antenna) Transmitter 66×106.5×24.7 (mm) Receiver 106.5×66×24.7 (mm) Net weight Transmitter 236g Receiver 245g Working Temperature 0°C -+40°C
