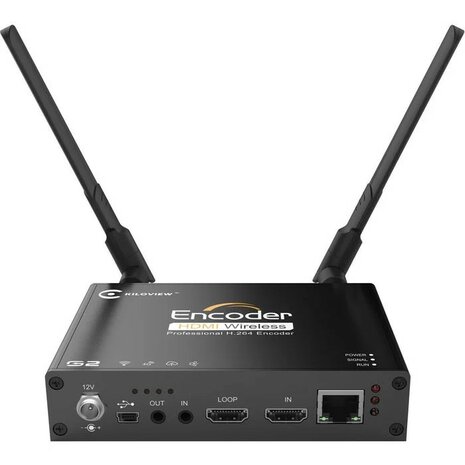

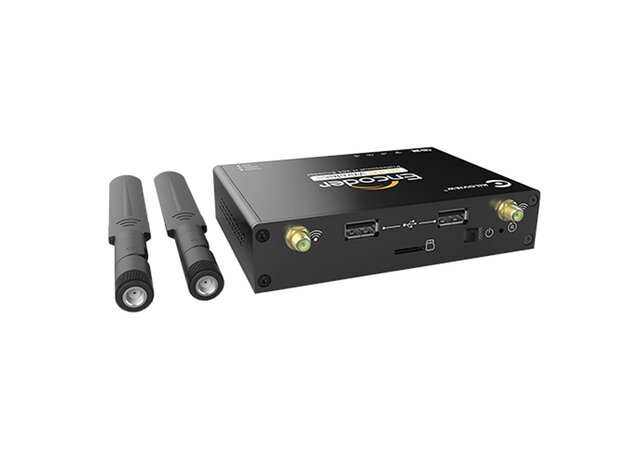

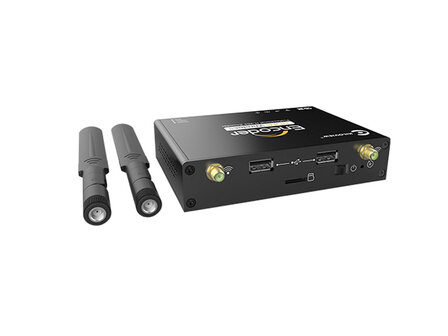

De Kiloview G2 draadloze video-encoder kan de volledige 1080P HDMI-videobron zonder verlies naar IP-signaal converteren en naar internetstreaming-uitzendplatforms pushen via Ethernet, ingebouwde wifi of 4g-netwerk om videotransmissie te realiseren, waardoor live-uitzendingen altijd en overal beschikbaar zijn. Kiloview G2-encoder wordt veel toegepast in hotel-tv-systemen, schoolonderwijs en videoconferenties. G2-encoder is goedgekeurd door CE,FCC,HDMI,ISO,etc.
Features
• H.264 video encoding
• HDMI loop monitoring
• Voice intercom
• Branded chips
• SDK provided
• SRT supported
• Support wifi/4g/Ethernet
• Low power consumption (<4w)
• Text and image overlay
| Model |
G1: SDI; G2: HDMI |
| Video input |
G1:1*BNC SDI; G2: 1*HDMI |
| Analog video input |
2*3.5mm |
| USB |
2*USB 2.0 Type-A |
| Micro SD |
1*Micro SD/TF Card storage interface |
| Network support |
WIFI (2.4G/5G Hz)/Ethernet/Satellite |
| Video loop |
1*BNC SDI or 1*HDMI |
| Video resolution |
Up to 1080P60Hz:
SDI model：1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz
HDMI model: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P/30/50/59.94/60Hz; below 1920x1200 |
| Video encoding |
H264/AVC, Motion-JPEG |
| Audio encoding |
AAC/G.711 |
| Encoding latency |
<67ms |
| Media transmission protocols |
SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP /Onvif, customize for SIP |
| Image and text overlay |
Support custom text and picture overlay function, which can be superimposed to any position on the screen |
| Record storage |
Micro SD/TF card local recording, and NAS network storage |
| Management |
APP/ Web |
| Power supply/Consumption |
DC 12V 1A / 4W |
| Operating temperature |
-20℃~60℃ |
| Size |
125*89*28mm (4.92”*3.50”*1.10”) |
| Weight |
380g(13.4oz) |
| |
|
